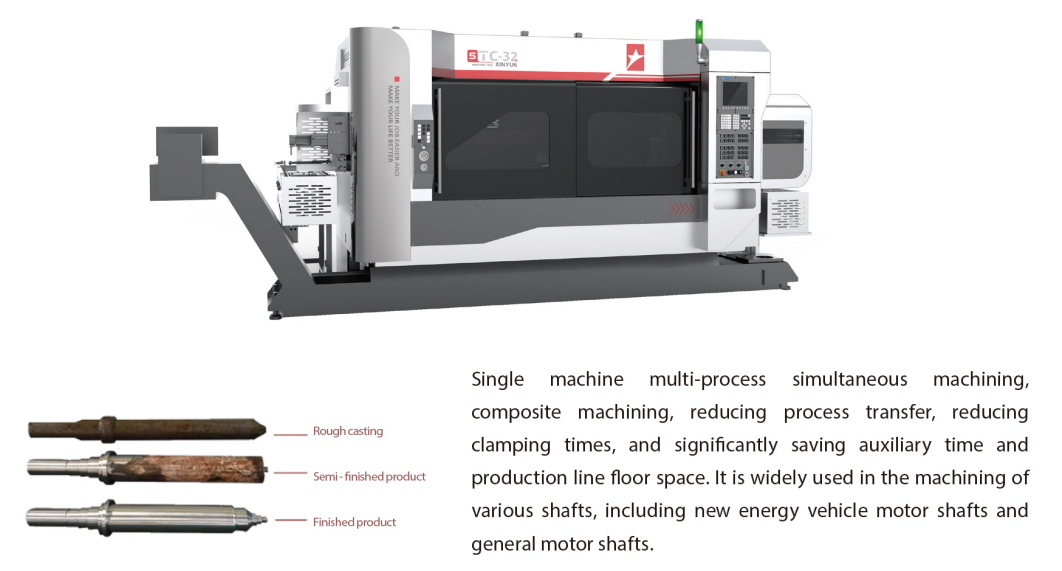

One machine is equivalent to an entire production line.
1.Multi-spindle, multi-process composite machining
2.Integrated design of robot and machine tool
3.In-process inspection and automatic size compensation
4.Overall efficiency increased by more than 30%
Technical Parameters
| Name | Parameter Value | Parameter Value |
| Turning Module | Double-sided turning/CNC | |
| Maximum Clamping Outer Diameter | 72 (Customizable) | |
| Maximum Flange Diameter | 200 (Customizable) | |
| Maximum Workpiece Length | 400 (Customizable) | |
| Clamping Method | Double collet/ Three-jaw Chuck | German Hainbuch Collet Available as Option |
| Maximum Moving Speed of X-axis | 25m/min | |
| Maximum Moving Speed of Z-axis | 25m/min | |
| Maximum Moving Speed of Connecting Shaft | 15m/min | |
| Maximum Spindle Speed | 6000r/min | |
| Tool Post Type | Servo Turret | |
| Spindle Motor Power | 7.5kW | |
| Tailstock Function | Optional | |
| Built-in Automatic Loading and Unloading Manipulator | Yes | |
| Online Detection and Automatic Dimension Compensation | Optional | Single-segment and Multi-segment Dimension Measurement Compensation Available |
| Internet of Things and Remote Monitoring Function | Optional | Cloud or Local Server Available |

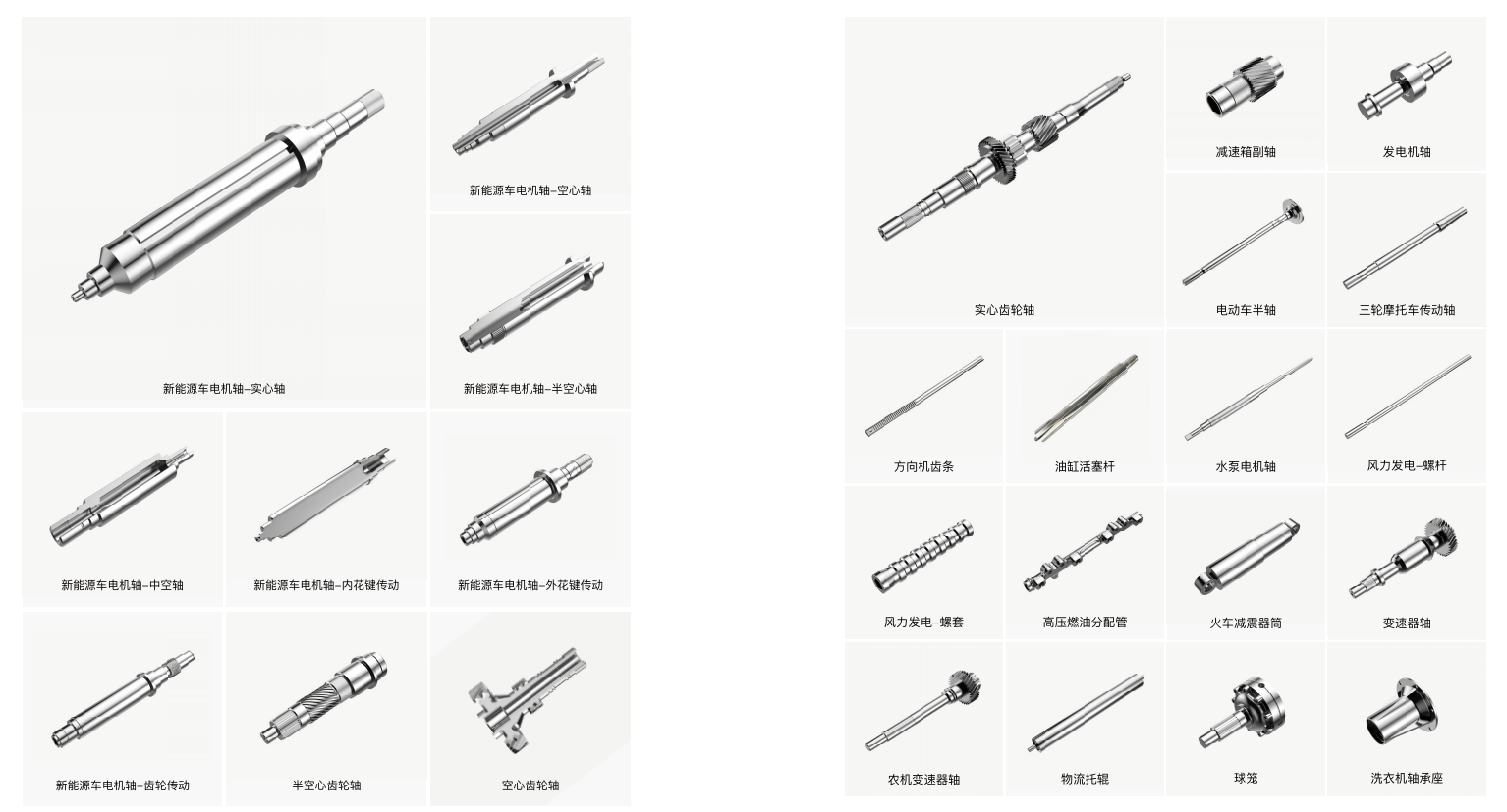

Processable Workpiece
