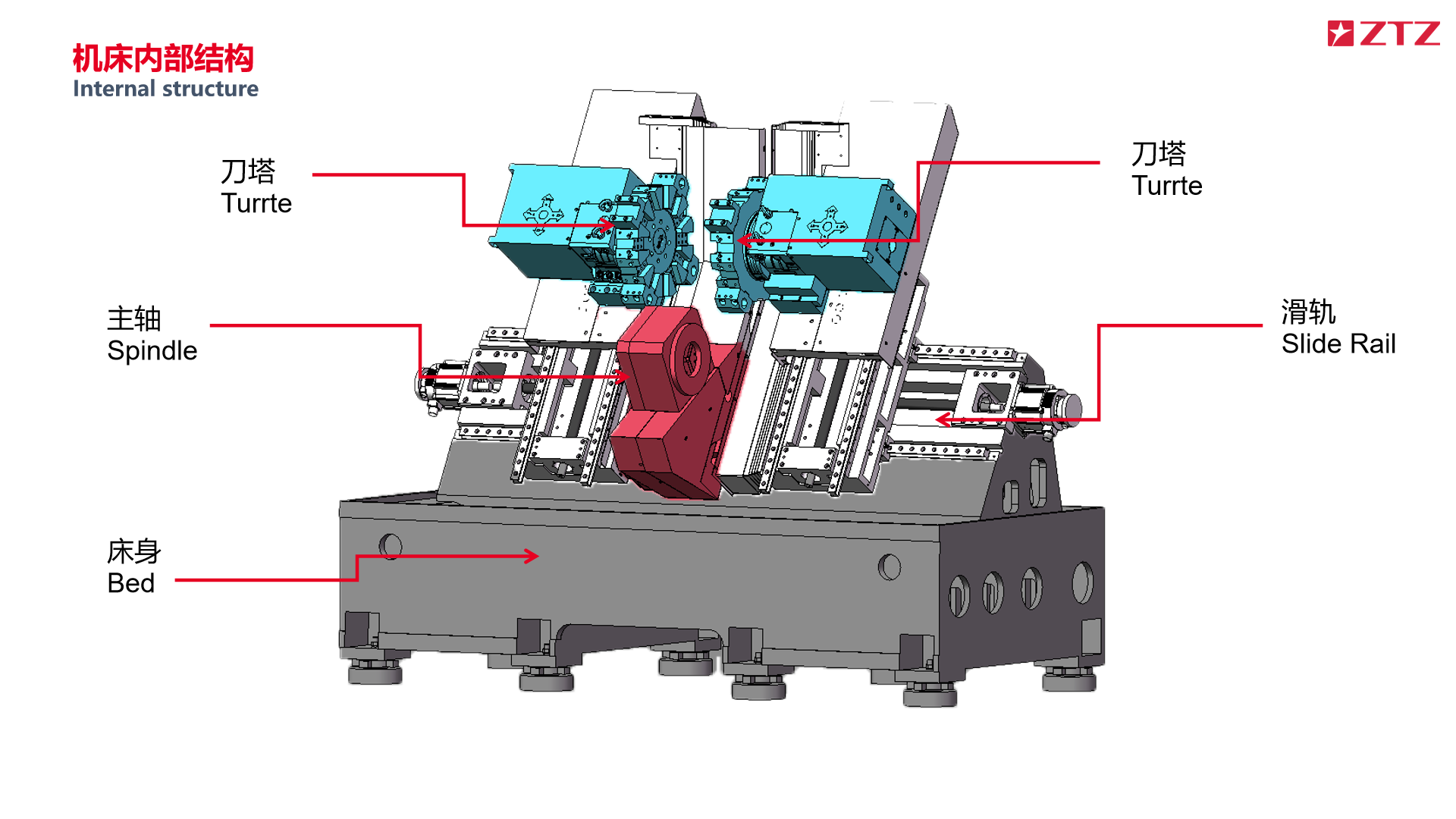

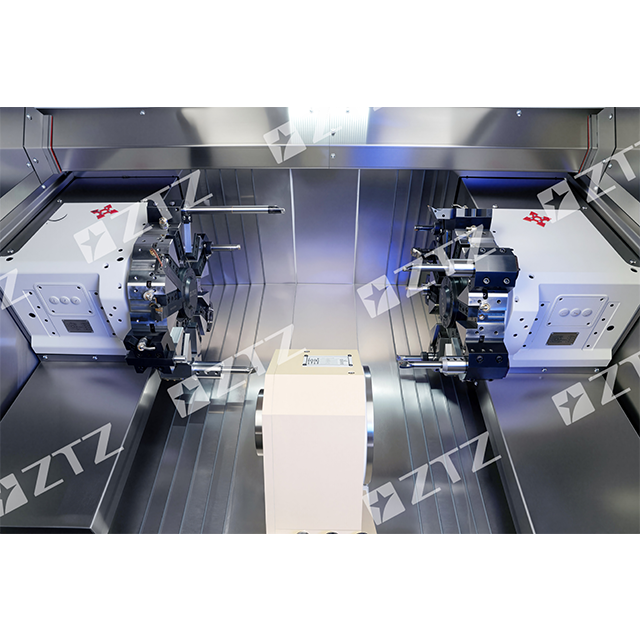

The machine employs a centrally-mounted spindle to drive the work piece rotation, allowing simultaneous turning and other machining operations on both ends.It is widely used for machining common shaft components in various industries, such as new energy motor shafts, automotive transmission shafts, logistics transfer shafts, shock absorber shafts, reducer shafts,and water pump motor shafts.
Technical Parameters
| Name | Parameter Value |
| Number of Processing Channels | Dual-channel N |
| Number of Spindles | Single spindle/Dual spindles |
| Maximum Machining Outer Diameterv | 10 - 360mm |
| Maximum Workpiece Length | 100 - 4000mm |
| Maximum Moving Speed of X-axis | 25m/min |
| Effective Stroke of X-axis | 300mm |
| Maximum Moving Speed of Z-axis | 25m/min |
| Effective Stroke of Z-axis | 300mm (Customizable) |
| Maximum Spindle Speed | 3500r/min |
| Spindle Motor Power | 5.5 - 15KW |

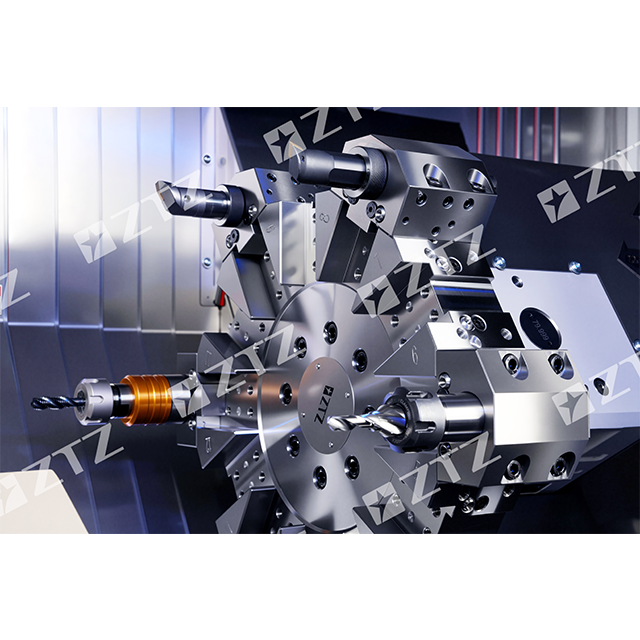

| Turret Form | Turret + Gang Tool |
| Tool Protection | Equipped with Embedded Tool Breakage Detection System (Optional) |
| Automatic Loading and Unloading | Truss + Articulated Robot Arm |
| nternal Protection Form | Armor-type Internal Protection |
| Workpiece Clamping Form | Spring Collet |
| Milling Function | Optional |
| Total Weight | 8 tons |
| Total Electrical Capacity | 22KW |

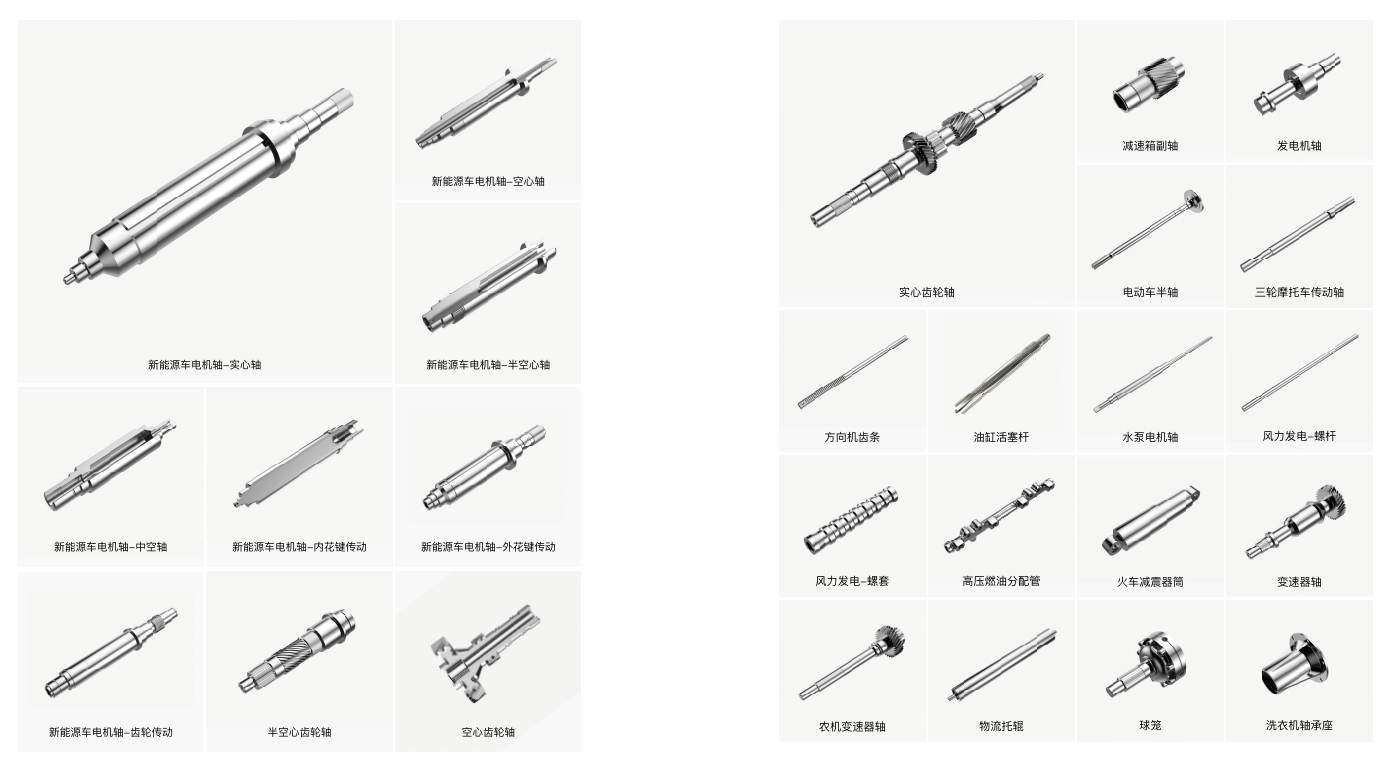

Processable Workpiece
