> Turning removes the majority of machining allowance, reducing grinding wheel wear by 90%.
> Concentricity of internal holes at both ends ≤ 0.005 mm.
>In-process dimensional measurement ensures dimensional dispersion within ±0.002 mm.
Technical Parameters
| Name | Parameter Value | Name | Parameter Value |
| Number of Processing Channels | Dual-channel N | Spindle Motor Power | 11kW |
| Number of Spindles | Single spindle P | Tool Post Type | Turret + Grinding Spindle |
| Maximum Processing Outer Diameter | 72mm (Customizable) | Tool Protection | Equipped with Embedded Tool Breakage Detection System (Optional) |
| Maximum Workpiece Length | 200mm (Customizable) | Automatic Loading and Unloading | Integrated Truss Manipulator |
| Maximum Movement Speed of X-axis | 30m/min | Internal Protection Type | Armor-type Internal Protection |
| Effective Stroke of X-axis | 400mm | Workpiece Clamping Type | Integrated Collet |
| Maximum Movement Speed of Z-axis | 30m/min | Milling Function | Optional |
| Effective Stroke of Z-axis | 300mm | Total Weight | 8 tons |
| Maximum Spindle Speed | 2000r/min | Total Electrical Capacity | 35KW |
| Grinding Main Spindle Speed | 30000r/min |

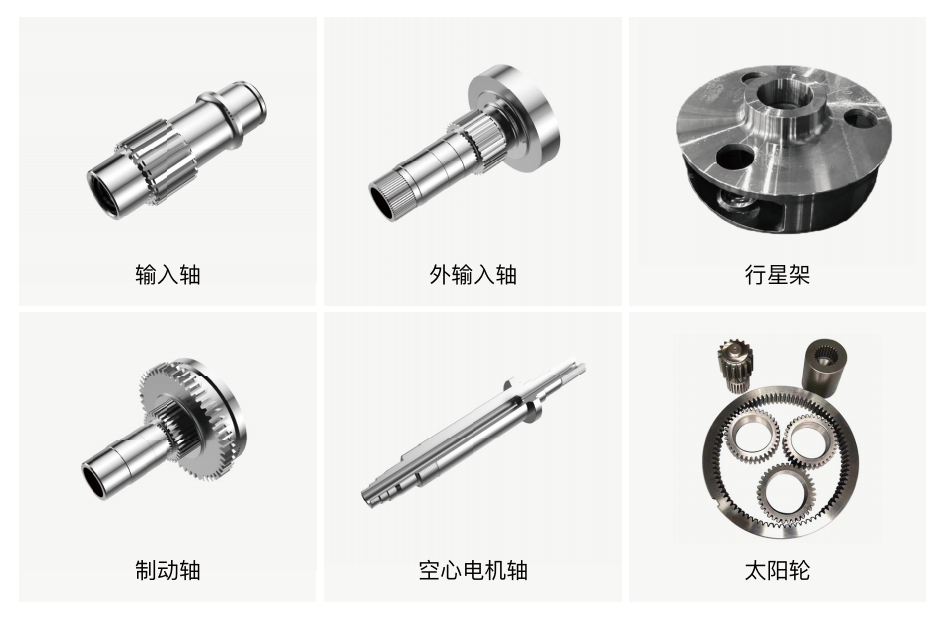

Processable Workpiece
