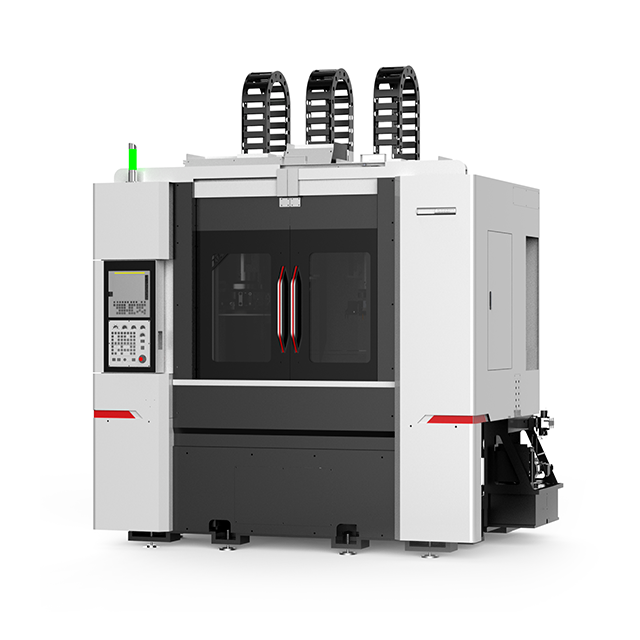

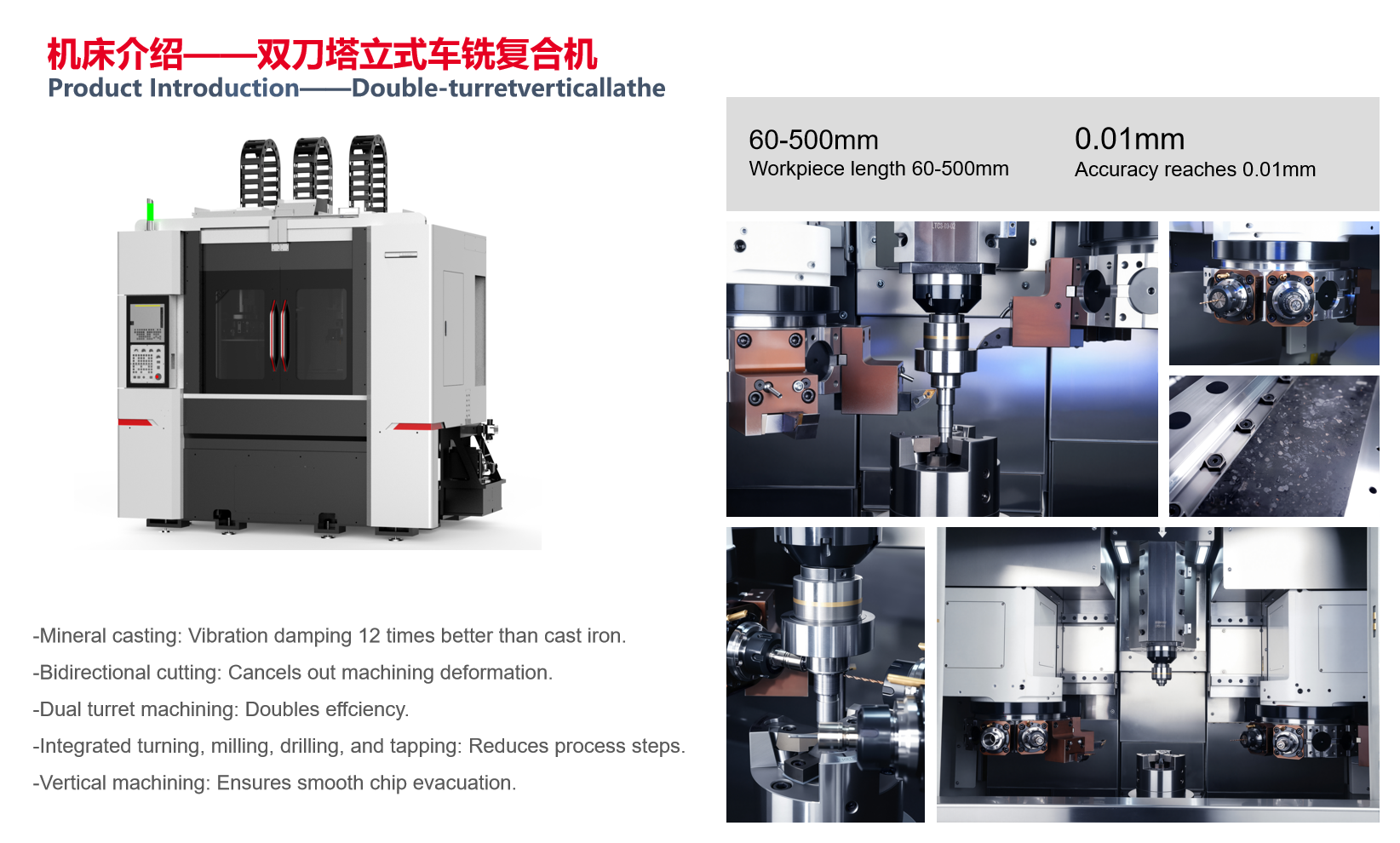

Turning and Milling Compound Machining:Complete multiple operations in one setup, including turning of external diameters, drilling of cross holes, and milling of slots.The dual-power turret doubles efficiency. The vertical structure ensures smooth chip evacuation and reduces machine footprint. Equipped with a dual-channel CNC system, a centrally positioned spindle, and a high-speed spindle, it delivers high efficiency and precision.

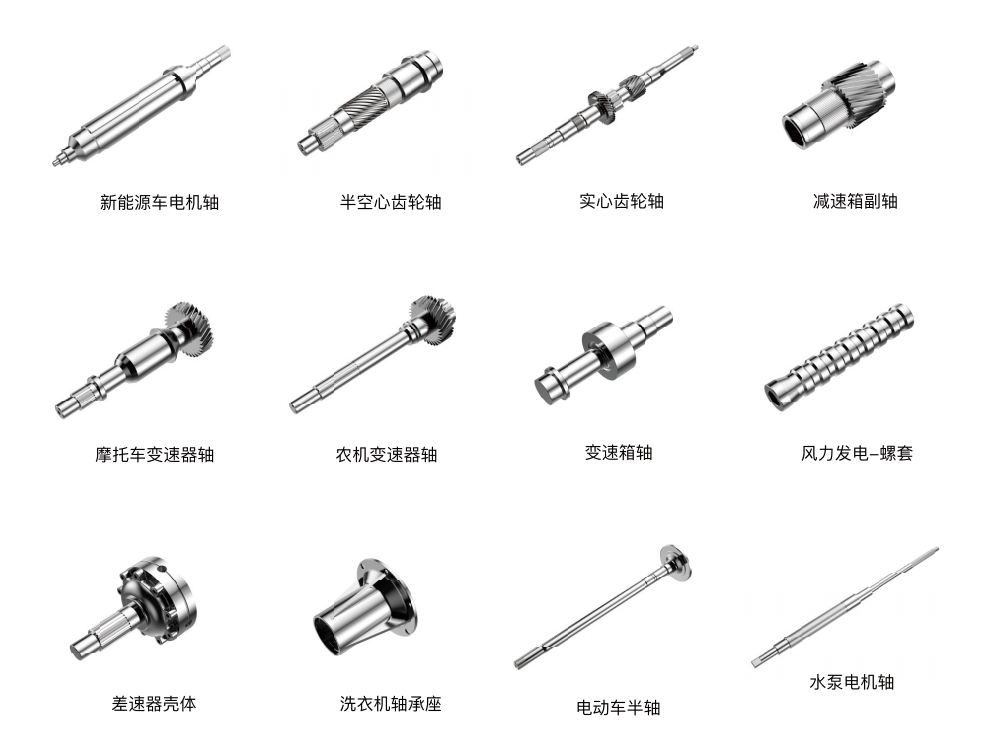

Processable Workpiece
| Name | Parameter Value | Name | Parameter Value |
| Maximum Outer Diameter | ≤150mm | Single Pass Cutting Amount | ≤4mm |
| Maximum Machining Length | ≤500mm | Feed Rate | 0.1~~0.4mm/rev |
| X-axis Repeatability Accuracy | ±0.002mm | Cutting Linear Velocity | 150-300mm/min |
| Z-axis Repeatability Accuracy | ±0.003mm | Outer Diameter | ≤0.01 |
| Maximum X-axis Travel Speed | 25m/min | Outer Diameter Run-out | <0.01 |
| Maximum Z-axis Travel Speed | 25m/min | Turning Surface Roughness | Ra0.8-3.2 |
| Spindle Run-out | ≤0.003mm | Tool Post Type | Servo Turret + Live Tool Turret |
| Maximum Spindle Speed | 4000r/min | Automatic Loading and Unloading | Optional Configuration |
