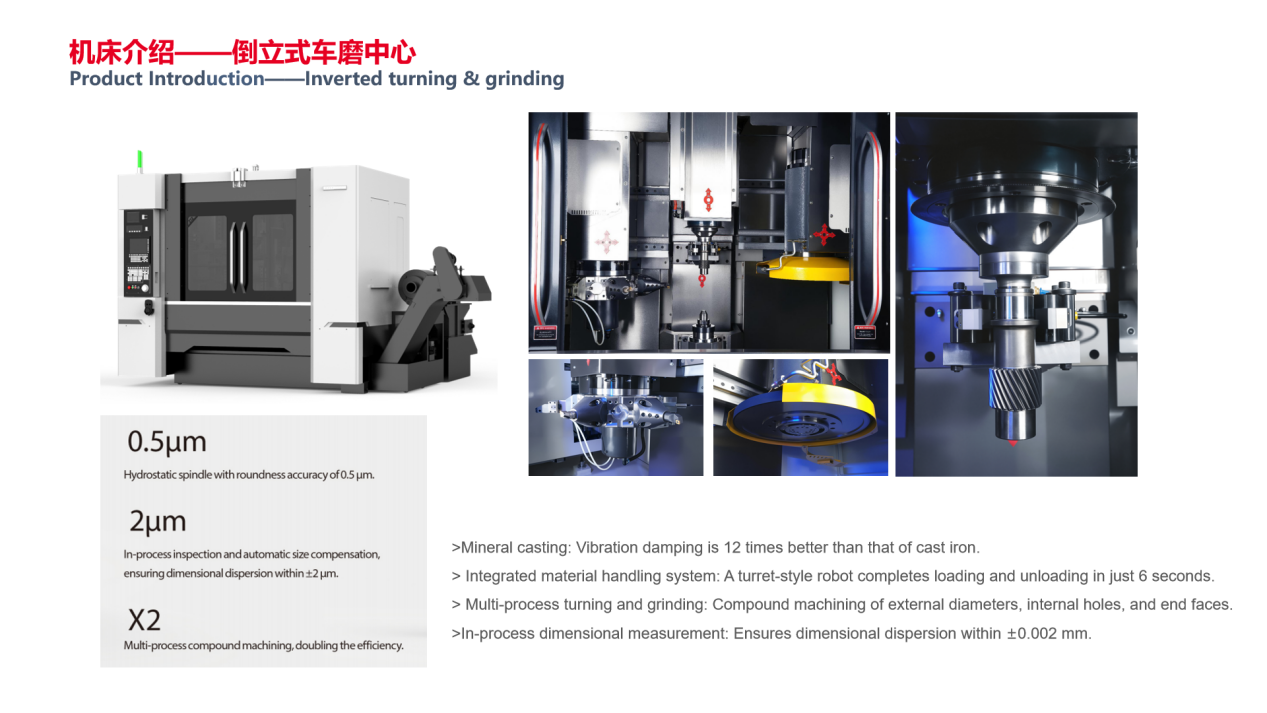

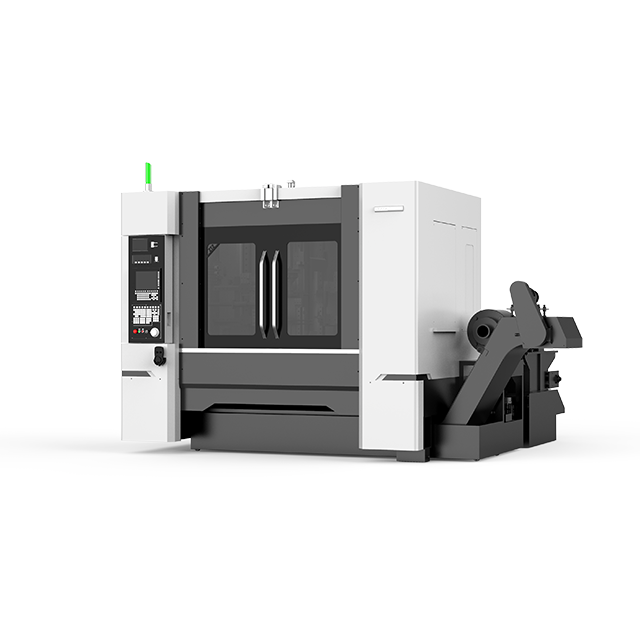

A comprehensive machine tool that creatively integrates automatic loading and unloading, turning, grinding, in-process inspection, automatic size compensation, and industrial internet of Things (Io T) technology.

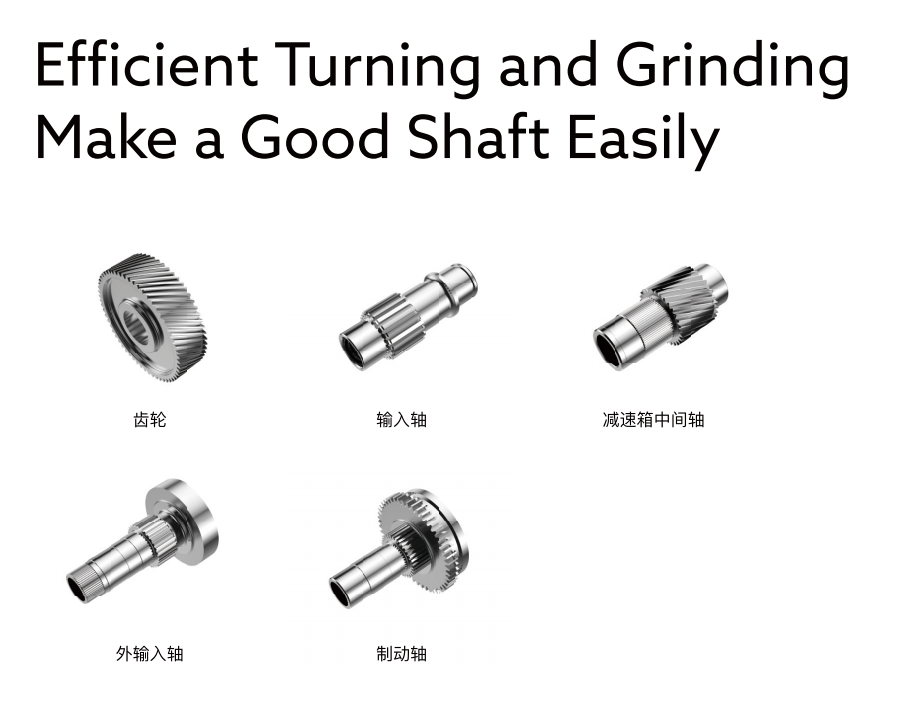

Processable Workpiece
| Name | Turning Unit | Grinding Unit | Special Instructions |
| Maximum Machinable Outer Diameter | ∅80mm | ||
| Maximum Turning Diameter | ∅100mm | ||
| Maximum Workpiece Length | 500mm | ||
| X-axis Rapid Traverse Speed | 25m/min | ||
| Z-axis Rapid Traverse Speed | 30m/min | ||
| Maximum Workpiece Spindle Speed | 3000r/min | Hydrostatic Spindle | |
| Maximum Grinding Spindle Linear Velocity | 30m/s | ||
| Workpiece Spindle Power | 15KW | ||
| Grinding Spindle Power | 18KW | ||
| Execute | Combined Turret / Multi-function Turret | Grinding Spindle | |
| Cooling Function | High-pressure System (Optional) | ||
| Expandable Optional Features | Automatic Loading/Unloading In-process Dimension Measurement Linear Encoder / Optical Scale | Movable Center Rest In-line Grinding Probing | |
| Offline Inspection & Automatic Size Compensation | Optional | Selectable single-segment and multi-segment dimension measurement and compensation | |
| IoT & Remote Monitoring Function | Optional | Selectable cloud/local server dual modes | |
